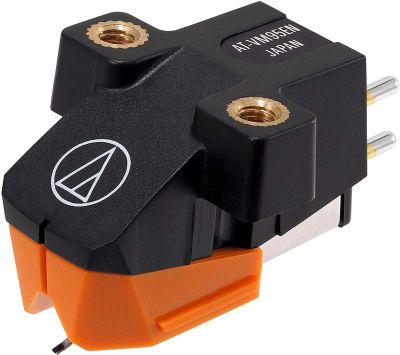

AUDIO TECHNICA - AT-VM95EN Testina Phono MM ellittica

Price: € 145.00
Send to a friend

Condividi


Availability:
Product Type: Testine Puntine HiFi

Purchase Products

QTY
Description:

Model: AT-VM95EN
Type: VM Stereo Dual Magnet
Mounting: 1/2" centres
Frequency Response: 20 - 23,000 Hz
Channel Separation: 22 dB (1 kHz)
Output Channel Balance: 2.0 dB (1 kHz)
Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle: 23°
Vertical Tracking Force Range: 1.8 - 2.2g (standard 2.0 g)

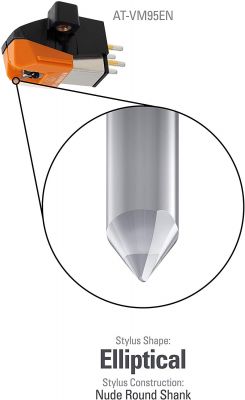

Stylus Shape: Elliptical
Stylus Size: 0.3 x 0.7 mil
Stylus Construction: Nude Round Shank
Cantilever: Aluminium Pipe
Coil Impedance: 3.3 kΩ (1 kHz)
Coil Inductance: 550 mH (1 kHz)
DC Resistance: 485 Ω
Static Compliance: 20 x 10 - 6 cm / dyne
Dynamic Compliance: 7 x 10 - 6 cm / dyne (100 Hz)
Wire Used for Coil: T.P. Copper
Recommended Load Impedance: 47,000 Ω
Recommended Load Capacitance: 100-200 pF
Cartridge Weight: 6.1g
Dimensions: 17.2 x 18.9 x 28.3 ( H x W x D mm)
Replacement Stylus: AT-VMN95EN

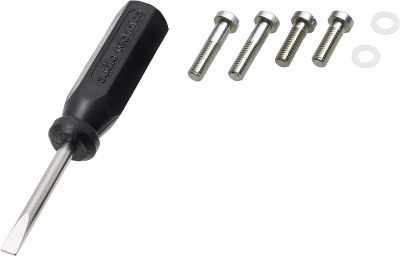

Accessories Included: Two 11 mm installation screws.
Two 8 mm installation screws.
Two washers
Non-magnetic screwdriver


Code: AT-VM95EN - 4961310146009

Distribution: IMPORT EUROPE

Notes:

Status: Catalogo

Production year: 2022

Weight: 150 gr..
